Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: Sj80/33 + Sj50/33 extruder
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 45888-46666usd
Packaging Details: film
Delivery Time: 68days
Payment Terms: T/T, L/C
Supply Ability: 32 sets
Pipe Name: |
Extruder Machine Drainage Pipe PVC Corrugated Pipe Extrusion Line |
Pipe Mould: |
46 Pairs With 2 Sets Spare Parts |
Pipe OD: |
40-200mm |
Pipe Application: |
Double Wall Corrugated Pipe Machine |
Application: |
Extruder Machine Drainage Pipe PVC Corrugated Pipe Extrusion Line |
Application 2: |
Agriculture Pipe Machine |
Pipe Name: |
Extruder Machine Drainage Pipe PVC Corrugated Pipe Extrusion Line |
Pipe Mould: |
46 Pairs With 2 Sets Spare Parts |
Pipe OD: |
40-200mm |
Pipe Application: |
Double Wall Corrugated Pipe Machine |
Application: |
Extruder Machine Drainage Pipe PVC Corrugated Pipe Extrusion Line |
Application 2: |
Agriculture Pipe Machine |

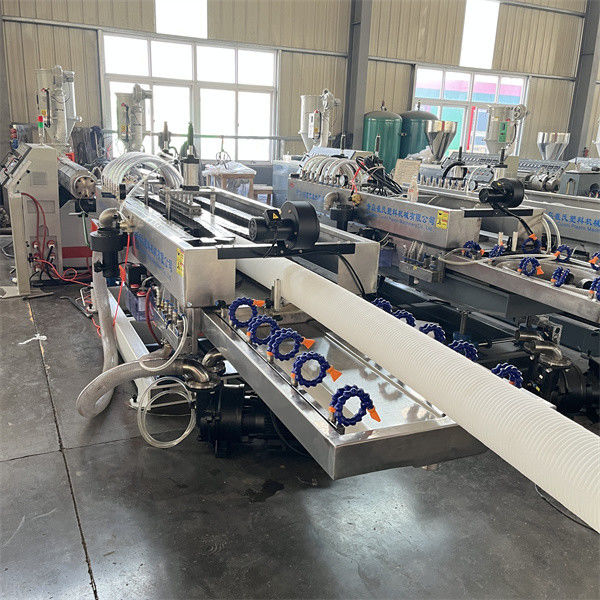

Double wall corrugated pipe extrusion machine
DESCRIPTION OF GOODS:
|
Name of Commodity
|
Quantity
|
|
DOUBLE wall corrugated pipe line 1.SJ80/33 single screw extruder 2. SJ50/30 single screw extruder 3.Die head 4.mould 50-250mm 5.high speed calibration table 6.Cutter machine |
1 set |
| FOB qingdao USD |
HDPE/UPVC underground drain pipe
Corrugated Pipe Making Line Corrugated Double Wall Pipe Machine
Project evaluation
1.1 Basic Infrastructure (Provided by customer)
a. Electricity network: can adjustable according to your local voltage standard.
b. Wire/cables: wires/cables from customer’s general control cabinet to the main control cabinet for PVC corrugated pipe production line; all electrical cable from the main control cabinet to each machine.
c. Water supply: main water pipe line supply and water pipes to machines
d. Compressed air supply: necessary compressed air for mould, forming machine, winder
e: lubrication oil: for reducer gearbox
1.2 Energy consumption:
a. Electricity requirement
Total Install power: 55KW.
Actual power consumption percentage: 70% of total power
b. Labor requirement
Max. Qty. of labors: 1 person
c: compressed air requirement: 0.4Mpa-0.6Mpa
| Item | Description | Unit | SJ80/33 |
| 1 | Screw diameter | mm | 80 |
| 2 | L: D | 33;1 | |
| 3 | Motor power | KW | AC37 |
| 4 | Brand motor | xima | |
| 5 | Motor speed adjusting mode | delta Frequency conversion | |
| 6 | Inverter | delta | |
| 8 | Extrusion output | Kg/h | 150kg/h |
| 9 | Material of screw and barrel | 38CrMoAlA,Nitrogen treated | |
| 10 | Nitrogen depth | mm | 0.5-0.8 |
| 11 | Heating power | KW | 4 zones, 10kw |
| 12 | Cooling power | KW | 4 zones, 250w×4 |
| 13 | Gear box | Hard gear surface, low noise design | |
Qingdao Cuishi Plastic Machinery Co.,Ltd
Sales Manager : Lucy Zhang
Wechat /Whatsapp : +86 15753291269
Address : Xianggang road , Jiaozhou city , Qingdao city
Shandong province , China , Post code :266300
We make the plastic machinery since 1999
