Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: sjsz55/110 sjsz65/132 sjsz80/156 sjsz92/188
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 11428-27143
Packaging Details: film
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 56 sets
Extruder: |
Plastic Extruder |
Control System: |
Siemens PLC Touch Screen |
Drive Motor Power: |
22-110KW |
Barrel Material: |
38CrMoAlA |
Extrusion Output: |
300-500kg/h |
Feeding Capacity: |
100-350kg/h |
Extruder: |
Plastic Extruder |
Control System: |
Siemens PLC Touch Screen |
Drive Motor Power: |
22-110KW |
Barrel Material: |
38CrMoAlA |
Extrusion Output: |
300-500kg/h |
Feeding Capacity: |
100-350kg/h |

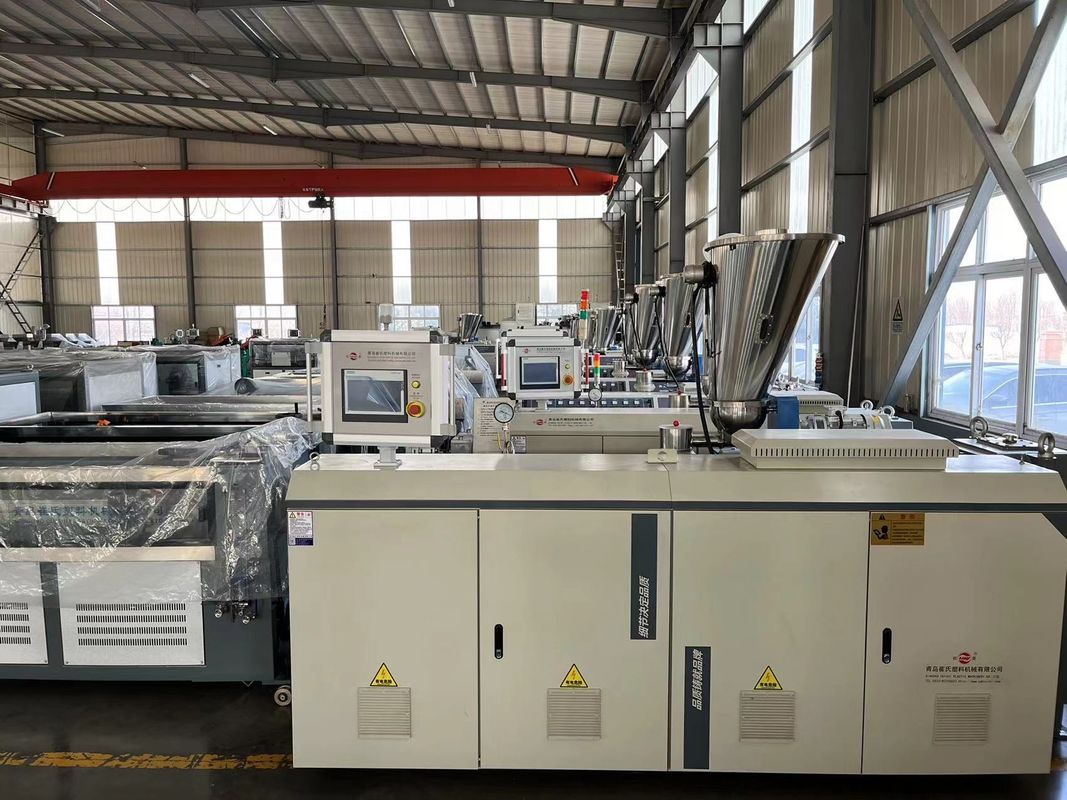

Conical Twin Screw Extruder Plastic Extrusion Machine Pvc Pipe Extruders
| 1 | Screw Diameter | mm | ￠65/132 |
| 2 | Screw length | mm | 1400 |
| 3 | Material of Screw and Barrel | / | 38CrMoAlA Nitrogen Treatment |
| 4 | Depth of nitration case | mm | 0.4-0.7mm |
| 5 | Hardness of nitration | HV | >940 |
| 6 | Roughness of the surface | Ra | 0.4un |
| 7 | Hardness of double alloys | HRC | 55-62 |
| 8 | Depth of double alloys | mm | >2 |
| 9 | Heating Power | KW | 24 |
| 10 | Barrel Heating | / | Casting Aluminum Heater |
| 11 | Barrel Cooling | / | Low noise blower cooling |
| Transmission case | |||
| 1 | Applicable standard | / | JB/T9050.1-1999 |
| 2 | Material of gear and shaft | / | Adopt high strength alloy, carburizing and quenching, grinding |
| 3 | Gear precision and hardness | / | 6grade, HRC 54-62 |
| 4 | Oil sealing | All sealing adopt good products | |
| 5 | Screw Safeguard | / | Automatic screw displacement alarm |
| Dosing feeding device | |||
| 1 | Motor power | KW | 1.5 |
| 2 | Feeding speed regulator | / | frequency conversion |
| 3 | Can be adjusted separately or synchronized adjusting with extrusion. | ||
| Motor and electric system | |||
| 1 | Motor Power | KW | 31KW innovance servo motor (AC motor)---Xima brand |
| 2 | Speed adjusting mode | / | Frequency conversion adjusting |
| 3 | Max Output Capacity | Kg/h | 250 |
| 4 | Vacuum exhaust system | / | With vacuum pump |
Plastic extrusion machinery is used in the manufacturing process of plastic products. It is a specialized type of machinery that melts raw plastic material and then shapes it into a continuous profile. The process involves feeding plastic pellets or granules into a hopper, where they are heated and melted. The molten plastic is then forced through a die, which determines the shape and size of the final product. The extruded plastic is cooled and solidified before being cut or wound into the desired length or shape.
Plastic extrusion machinery is commonly used in various industries, including packaging, construction, automotive, and consumer goods. Some examples of products that can be produced using plastic extrusion machinery include pipes, tubes, profiles, sheets, films, and rods.
The machinery used for plastic extrusion can vary depending on the specific application and requirements. Here are some common types of plastic extrusion machines:
Different extrusion processes and applications may require specific variations or additional equipment to meet the desired specifications. It's important to consider factors such as the type of plastic material, production volume, product dimensions, and quality requirements when selecting the appropriate machinery for a specific application.
Qingdao Cuishi Plastic Machinery Co.,Ltd
Sales Manager : Lucy Zhang
Wechat /Whatsapp : +86 15753291269
Address : Xianggang road , Jiaozhou city , Qingdao city
Shandong province , China , Post code :266300
We make the plastic machinery since 1999
