Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: Reinforced Pipe Hose Extrusion Making Machine
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 18333-38388usd
Packaging Details: film
Delivery Time: 35 days
Payment Terms: TT , L/C
Supply Ability: 40 sets
Name: |
Hose Extrusion Making Machine |
Warranty: |
1 Year |
Application: |
VACUUM WATER OIL PUMP SPA DUCT GRIT SEWAGE |
Extruder: |
Pipe Extruder Machine |
Mould: |
Pvc Suction Pipe Machine |
Pipe: |
PVC FLEXIBLE HELIX SUCTION HOSE PIPE |
Name: |
Hose Extrusion Making Machine |
Warranty: |
1 Year |
Application: |
VACUUM WATER OIL PUMP SPA DUCT GRIT SEWAGE |
Extruder: |
Pipe Extruder Machine |
Mould: |
Pvc Suction Pipe Machine |
Pipe: |
PVC FLEXIBLE HELIX SUCTION HOSE PIPE |
PVC Suction Hose Machine Plastic Pipe Production Line Pvc Flexible Pipe Making Machine
Extruding Recycled Plastic Faucet Water Supply Lines Plastic Extrusion Dies
Pvc Pipe Making Machine PVC FIBER-REINFORCED HOSE EXTRUSION LINE
Single Screw Extruder Reinforced Flexible Pvc Duct Hose Production Line
PVC FLEXIBLE SUCTION HOSE PIPE FOR VACUUM WATER
PVC Water Suction Hose Pipe extruder

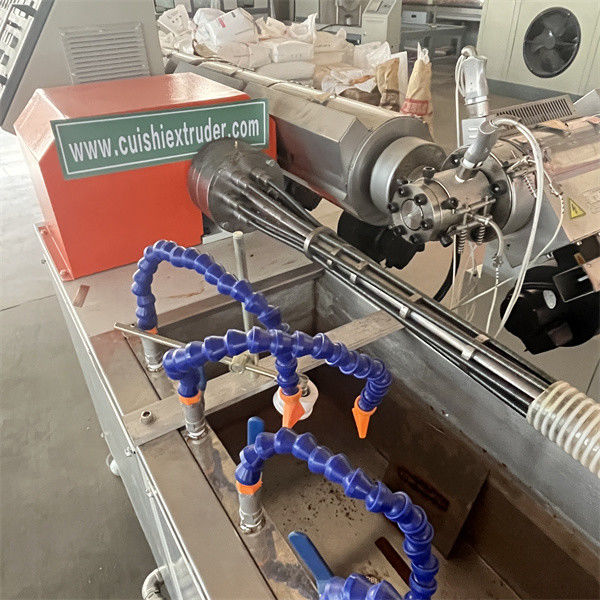

PVC Suction Hose Machine manufacturing or production machine that is used to produce PVC suction hoses. PVC suction hoses are flexible tubes made from polyvinyl chloride (PVC) material, designed to transport fluids, slurries, or other materials by creating a vacuum or suction force.
The PVC suction hose machine is a specialized piece of equipment used in the plastic extrusion industry. It typically consists of several components and processes
| Model of PVC Suction Soft Spiral Reinforced Hose Extruder | FLD45 | FLD65 |
| Extruder | SJ45/28 | SJ65/28 |
| Diameter range(mm) | 13-50 | 63-200 |
| Output (kg/h) | 40-60 | 60-100 |
| Installed power(Kw) | 35 | 50 |
| Model No. SJ45 | |
| Screw Diameter | 55mm |
| Ratio of L/D | 28:1 |
| Screw Material | 38CrMoAlA |
| Hardness of Screw | HV800-900 |
| Depth of Nitrogen Treatment | 0.5-0.7 mm |
| Screw Straightness | <0.015 mm |
| Main Motor Power | 15KW |
| Heating Method | Casting Aluminum Heater |
| Heating Zones | 6Periods(Screw Barrel 4periods,Head Piece 2 Periods) |
|
Heating Power |
18KW |
| Cooling Method | Forced Air Cooling |
| Cooling Zones | 4 periods |
| Fan Motor Power | 180W*4= 0.72KW |
| Screw Maximum Rotating Speed | 1-39Rpm |
| Maximum Capacity | 40-60Kg/h |
| Central Height | 1000mm |
| Gear Box | Hard Tooth Face |
| Dimension | 2660*1290*1600mm |
| Weight | 1.3T |
Qingdao Cuishi Plastic Machinery Co.,Ltd
Sales Manager : Lucy Zhang
Wechat /Whatsapp : +86 15753291269
Address : Xianggang road , Jiaozhou city , Qingdao city
Shandong province , China , Post code :266300
We make the plastic machinery since 1999
