Product Details
Place of Origin: China
Brand Name: Wangyuan
Certification: SGS
Model Number: pe pipe line
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 39999-63333usd
Packaging Details: film
Delivery Time: 40 days
Payment Terms: TT , L/C
Supply Ability: 66 sets
Name: |
Plastic Pipe Extrusion Line |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
SJ75/38 SJ90/38 SJ120/38 Extruder |
Extruder: |
SJ75/38 High Speed Single Screw Extruder |
Mould: |
110-450mm |
Warranty: |
1 Year |
Pipe Wall Thickness: |
Max 50mm |
Motor: |
132KW |
Name: |
Plastic Pipe Extrusion Line |
Application: |
Plastic Extrusion Machine |
Extruder Model: |
SJ75/38 SJ90/38 SJ120/38 Extruder |
Extruder: |
SJ75/38 High Speed Single Screw Extruder |
Mould: |
110-450mm |
Warranty: |
1 Year |
Pipe Wall Thickness: |
Max 50mm |
Motor: |
132KW |
PE Plastic Water Hydraulic Extruder 16-63mm Double Pipe Making Machine Extrusion Line
Plastic Extrusion Machine Hdpe Pipe Extruder PE Tube Making Machine
High Quality Hdpe Pe Pp Pipe Production Extrusion Machine Line With Cheap Price
Extruder Machine Pvc Extruding Machinery Polypropylene Extrusion Pipe Manufacturing Machine
|
Model
|
Pipe range(mm)
|
Extruder
|
Main Power
|
Output
|
Speed(m/min)
|
|
PE-63
|
16-63
|
SJ50/38
|
AC55
|
200 kg/h
|
10
|
|
PE-160
|
20-160
|
SJ60/38
|
AC90
|
360 kg/h
|
10
|
|
PE-200
|
50-200
|
SJ65/38
|
AC110
|
400kg/h
|
10
|
|
PE-315
|
110-315
|
SJ75/38
|
AC132
|
600kg/h
|
10
|
|
PE-450
|
110-450
|
SJ90/38
|
AC250
|
1000kg/h
|
10
|

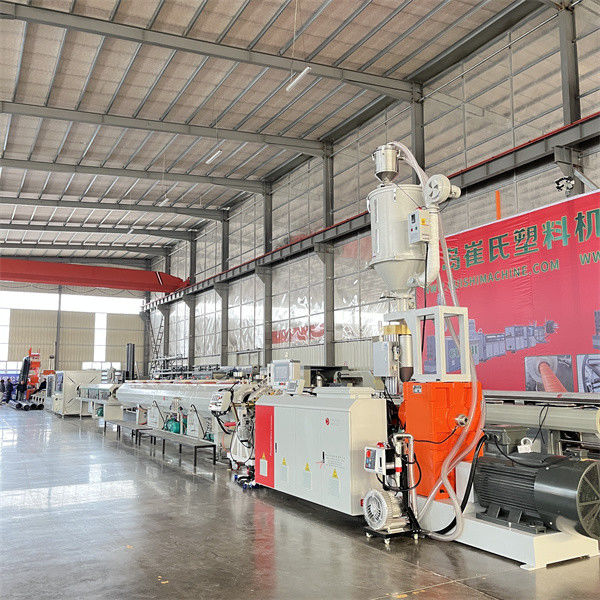

Plastic HDPE Pipe Production Extrusion Line Machinery Single Screw Extruder
This machine is used for producing water / gas supply, and sewage and drain pipe, also undergroud pipes. The Materials could be HDPE, PP,PPR materials. HDPE,PP,PPR pipe is from same machine.
Description of PE Pipe Extrusion Line
This PE Pipe Extrusion Line can be used in PE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb.
Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.
