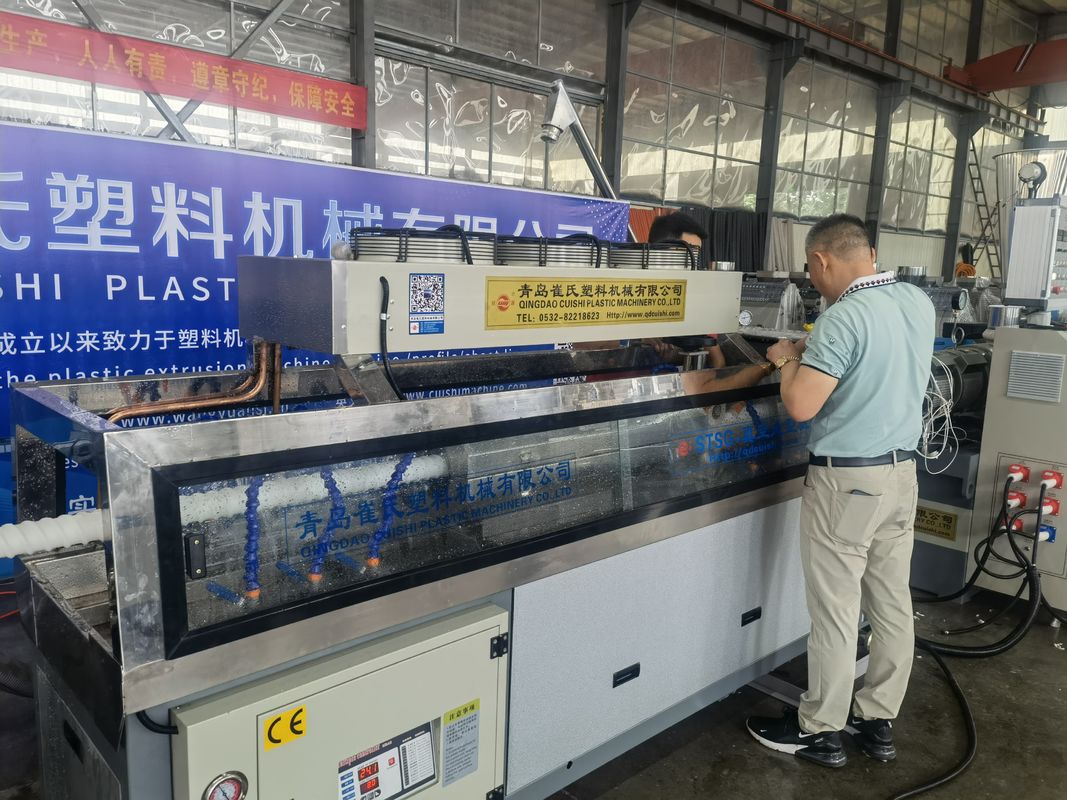

Advanced Precise Uniform Plastic Pipe Production Machine Automated Control

Product Details

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 20000

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Highlight:
                                                Automated Control Plastic Pipe Machine, Precise Uniform Plastic Pipe Machine, Advanced Plastic Pipe Machine


Advanced Precise Uniform Plastic Pipe Production Machine Automated Control

Industrial-Grade Corrugated Pipe Production System

System Overview

Our state-of-the-art manufacturing line specializes in producing reinforced plastic corrugated conduits with diameter capabilities spanning 40mm to 140mm. This comprehensive setup incorporates cutting-edge automation across all production phases to guarantee operational excellence and product uniformity.

Core Production Modules

Material Processing Unit

The primary extrusion module transforms polymer compounds into continuous tubular profiles with exceptional dimensional stability:

Optimized auger configuration ensures homogeneous material flow
Multi-zone thermal regulation maintains precise temperature gradients
Energy-efficient drive mechanism reduces operational costs

Profile Shaping Station

The forming apparatus converts extruded material into corrugated structures through advanced molding techniques:

Differential pressure forming technology achieves precise rib patterns
Interchangeable forming dies accommodate various profile dimensions
Gradual cooling process prevents material stress

Technical Parameters

Characteristic	Specification
Operational Range	40-140mm diameter spectrum
Throughput Capacity	Adjustable up to 5 linear meters/minute
System Footprint	20 meter continuous layout
Control Architecture	Siemens S7-1200 PLC with Omron HMI

Quality Assurance Features

Automated wall thickness monitoring system
Real-time defect detection sensors
Precision length measurement and cutting

Industrial Applications

Manufactured conduits serve critical functions in:

Subsurface drainage networks
Utility corridor infrastructure
Civil engineering projects
Environmental management systems
