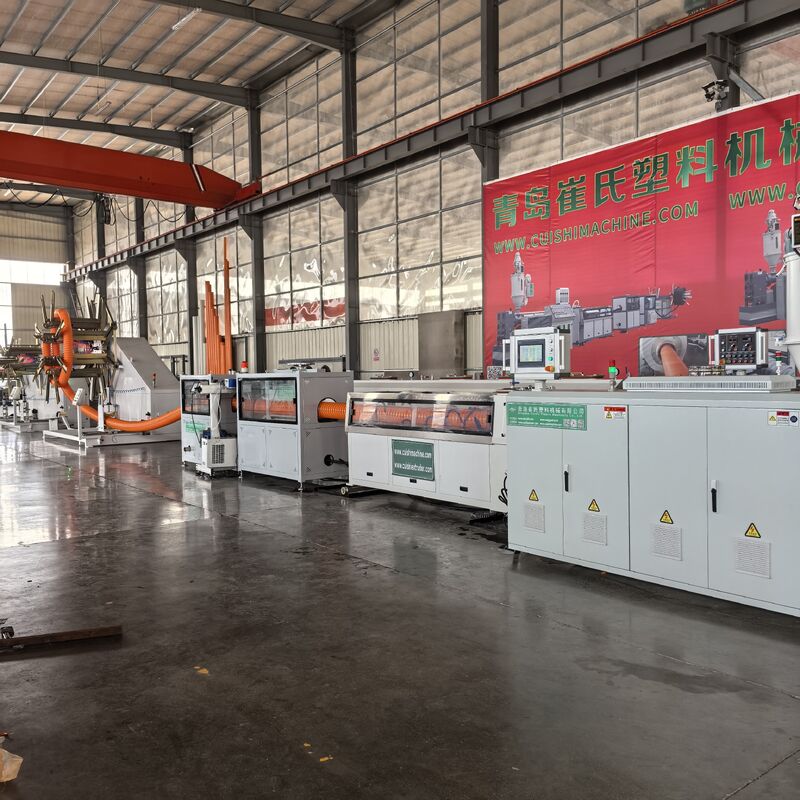

Plastic PE HDPE Carbon Spiral Corrugated Pipe Extrusion Making Machine Electrical Cable Conduit Production Line

Product Description:

The Spiral Pipe Extrusion Line is a state-of-the-art production system designed for manufacturing high-quality PE pipes with exceptional efficiency and precision. This fully automatic extrusion line specializes in producing single-wall PE pipes with an inner diameter ranging from 50mm to 200mm, making it an ideal solution for various industrial and infrastructure applications. Engineered to meet the highest standards in pipe manufacturing, this extrusion line integrates advanced technology and robust components to deliver consistent performance, superior product quality, and enhanced operational reliability.

One of the standout features of this Spiral Pipe Extrusion Line is its fully automatic grade, which ensures seamless operation from start to finish. Automation in the extrusion process not only improves production speed but also significantly reduces the need for manual intervention, minimizing human error and labor costs. The system’s automation encompasses precise control over temperature, extrusion speed, and pipe dimensions, guaranteeing that every PE pipe produced meets exact specifications and quality benchmarks.

The product focus of this extrusion line is the PE pipe, a versatile and widely used material known for its durability, flexibility, and resistance to corrosion and chemicals. The line is specifically designed to manufacture single-wall PE pipes, which are commonly used in water supply, irrigation, drainage, and cable protection. With pipe inner diameters ranging from 50mm to 200mm, the extrusion line caters to a broad spectrum of applications, from residential plumbing to large-scale industrial projects.

Cooling is a critical aspect of the pipe extrusion process, directly affecting the pipe’s final shape, strength, and surface finish. This Spiral Pipe Extrusion Line employs an efficient water cooling method, which rapidly solidifies the extruded PE material, ensuring dimensional stability and preventing deformation. The water cooling system is carefully engineered to maintain optimal temperature control throughout the pipeline, contributing to the production of pipes with uniform wall thickness and smooth surfaces.

Integral to the operation of this extrusion line is the incorporation of advanced corrugated pipe winding systems. These systems are essential for managing the produced pipes, enabling orderly winding and storage without compromising the pipe’s structural integrity. The winding systems are designed for flexibility and adaptability, allowing operators to switch between different pipe sizes within the specified range effortlessly. This feature enhances production versatility and maximizes throughput.

Additionally, the Spiral Pipe Extrusion Line is equipped with cutting-edge pipe corrugation processing equipment. This equipment is responsible for forming the characteristic corrugated profile of the pipes, which provides enhanced flexibility and strength while maintaining lightweight properties. The corrugation process is tightly integrated with the extrusion and cooling stages, ensuring that the pipes maintain their shape and mechanical properties throughout production. The pipe corrugation processing equipment is designed for durability and ease of maintenance, ensuring long-term reliability and minimal downtime.

At the heart of the entire production line is the corrugated pipe machine, a crucial component that combines precision engineering with innovative design. This machine efficiently shapes, extrudes, and corrugates the PE material into high-quality pipes that meet stringent industry standards. The corrugated pipe machine’s advanced control systems allow for real-time monitoring and adjustments, enabling operators to maintain optimal production conditions and respond swiftly to any process variations.

In summary, the Spiral Pipe Extrusion Line represents a comprehensive solution for manufacturers seeking a fully automatic, reliable, and high-performance production system for PE pipes. Its capability to produce single-wall pipes with inner diameters from 50mm to 200mm, coupled with a sophisticated water cooling method, ensures that the end products possess excellent mechanical properties and consistent quality. The integration of corrugated pipe winding systems, pipe corrugation processing equipment, and a precision corrugated pipe machine further enhances the line’s efficiency and versatility. Whether for water supply, drainage, or cable protection applications, this extrusion line stands out as a top-tier choice for modern pipe manufacturing needs.

Features:

• Product Name: Spiral Pipe Extrusion Line
• Material Compatibility: PE, PP
• Cooling Method: Water Cooling for efficient heat dissipation
• Pipe Type: Single-wall spiral pipes
• Product Output: High-quality PE pipes
• Automatic Grade: Fully Automatic operation for enhanced productivity
• High Speed Forming Machine ensures rapid production rates
• Designed as Spiral tubing fabrication units for precise pipe manufacturing
• Advanced plastic extrusion machine technology for reliable performance

Technical Parameters:

Applications:

The Cuishi Spiral Pipe Extrusion Line, available in models sj70/33, SJ75/30, SJ80/30, and SJ90/30, is a state-of-the-art solution designed for the efficient production of single-wall corrugated pipes. Manufactured in China and certified with CE and ISO9001:2008 standards, this spiral corrugated pipe machinery ensures high-quality output and reliable performance, making it ideal for various industrial applications. With a pipe inner diameter range of 50-200mm and compatibility with PE and PP materials, this equipment is perfect for producing durable PE pipes used in water supply, drainage, agricultural irrigation, and cable protection.

This corrugated tubing production equipment is highly versatile and suited for manufacturers looking to produce single wall corrugated pipes that meet stringent market demands. The spiral extrusion line employs an advanced water cooling method, which enhances the pipe’s structural integrity and surface finish, ensuring excellent performance in diverse environments. Its robust design and precision engineering allow for continuous and stable operation, making it suitable for large-scale pipe production with a supply ability of 30 sets per month.

Ideal for businesses requiring reliable and efficient pipe manufacturing solutions, the Cuishi Spiral Pipe Extrusion Line can be ordered starting from a minimum quantity of just one set. Priced between $20,000 and $32,000, it offers outstanding value for companies focused on expanding their production capabilities. The machine is securely packaged with protective film and delivered within 50 days, with payment terms set as TT before shipment, ensuring a smooth and trustworthy transaction process.

Whether used in construction, agriculture, or infrastructure projects, this spiral corrugated pipe machinery supports the production of high-quality single-wall corrugated pipes that are lightweight, flexible, and resistant to corrosion. Its seamless integration into existing manufacturing lines and user-friendly operation make it an indispensable asset for pipe producers aiming to meet market needs efficiently and economically.

Customization:

Cuishi Spiral Pipe Extrusion Line offers exceptional product customization services tailored to meet your specific requirements. Our models sj70/33, SJ75/30, SJ80/30, and SJ90/30 are designed for high efficiency and precision in producing PE and PP pipes with diameters ranging from 50mm to 200mm. As a fully automatic High Speed Forming Machine, our spiral tubing fabrication units excel in manufacturing single-wall pipes, including corrugated electric conduit pipe, ensuring superior quality and performance.

Originating from China and certified with CE and ISO9001:2008, our equipment guarantees reliability and compliance with international standards. We accommodate a minimum order quantity of just 1 set, with pricing between 20,000 to 32,000 USD, packaged securely with film to prevent damage during transit. Our delivery time is approximately 50 days, supported by a supply ability of 30 sets per month, ensuring timely fulfillment of your orders.

Payment terms are flexible with TT before shipment, providing convenience and security in your transactions. Whether you require customization in pipe ID, material selection, or automation level, Cuishi’s Spiral Pipe Extrusion Line is engineered to adapt to your production needs, making it the ideal choice for efficient spiral tubing fabrication and corrugated electric conduit pipe manufacturing.

Support and Services:

Our Spiral Pipe Extrusion Line is supported by a dedicated team of technical experts committed to ensuring optimal performance and reliability. We offer comprehensive installation guidance, user training, and regular maintenance services to maximize the lifespan and efficiency of your equipment.

Our technical support includes troubleshooting assistance, software updates, and spare parts availability to minimize downtime and maintain continuous production. We also provide customized solutions tailored to your specific production requirements and help with process optimization.

Additionally, we offer on-site inspections and upgrades to keep your Spiral Pipe Extrusion Line operating at peak performance with the latest technological advancements. Our goal is to provide you with prompt, professional, and efficient service to support your business growth.
