High Efficiency Plastic HDPE PE Double Wall Corrugated Pipe Production Line Electric Cable Conduit Pipe Making Machine

Product Description:

The Double Wall Corrugated Pipe Machine is an advanced and efficient piece of Double Wall Corrugated Pipe Thermoforming Equipment designed to meet the diverse needs of pipe manufacturing industries. This machine is capable of producing high-quality double wall corrugated pipes with a diameter range of 50 to 160mm, making it suitable for a wide variety of applications including drainage systems, cable protection, and sewage systems. The precision engineering behind this equipment ensures consistent pipe dimensions and superior mechanical properties throughout the production process.

One of the key features of this Double Wall Corrugated Pipe Machine is its impressive production capacity, which ranges between 120 to 200 kilograms per hour. This high throughput is achieved through the use of a reliable single screw extruder, which provides efficient melting and extrusion of raw materials. The single screw extruder design is well-regarded for its simplicity, ease of maintenance, and stable output, contributing to the overall efficiency and longevity of the machine.

The machine is optimized for processing PP (Polypropylene) and HDPE (High-Density Polyethylene) materials, both of which are widely used in the pipe manufacturing industry due to their excellent chemical resistance, durability, and flexibility. These materials ensure that the pipes produced are robust enough to withstand various environmental stresses while maintaining lightweight properties that facilitate easy transportation and installation.

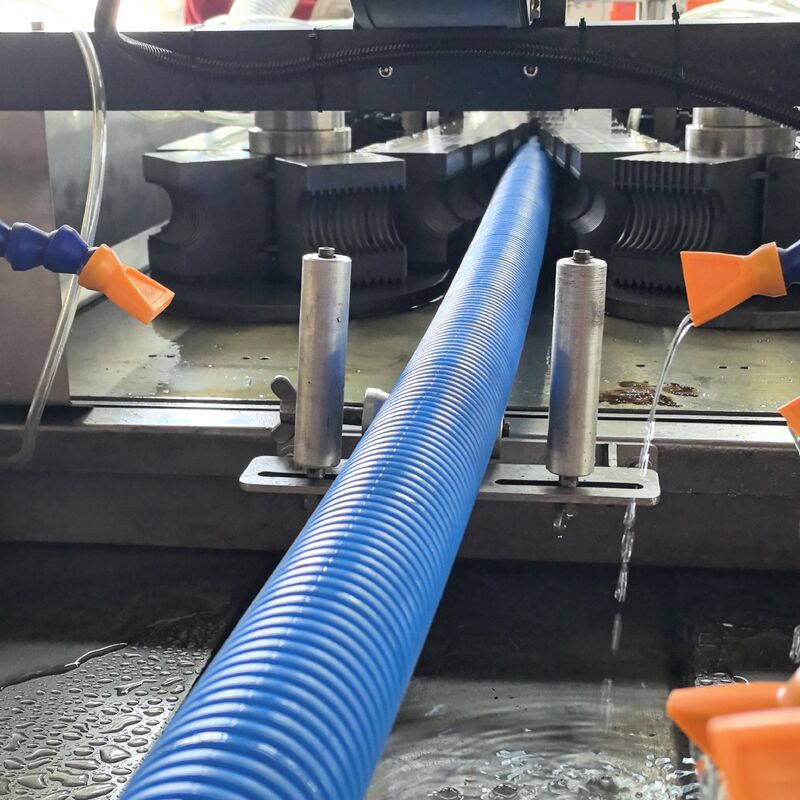

The Double Wall Corrugated Pipe Fabrication Plant includes advanced components such as precise mould systems and cooling mechanisms that contribute to the thermoforming process. The thermoforming equipment is designed to create the characteristic corrugated outer surface and smooth inner wall of the pipes, which enhances the mechanical strength and flow efficiency of the pipes respectively. The corrugated structure provides excellent resistance to external loads, while the smooth inner wall ensures minimal friction loss during fluid transportation.

The available outer diameters (OD) for pipes produced by this machine include 40mm, 50mm, 63mm, 75mm, 90mm, 110mm, and 160mm, offering flexibility to manufacturers to cater to different project specifications and industry standards. This range allows for the production of pipes suitable for residential, commercial, and industrial applications. Furthermore, the machine’s adaptability to different pipe sizes is supported by interchangeable moulds and adjustable production parameters.

Another critical component of the system is the Double Wall Corrugated Pipe Coiling Machine, which is integrated into the production line to facilitate easy handling and storage of the finished pipes. The coiling machine ensures that pipes are neatly wound without damage, optimizing space usage during transportation and storage. This feature enhances the overall workflow efficiency of the fabrication plant, reducing labor costs and minimizing material waste.

In summary, the Double Wall Corrugated Pipe Machine brings together high production efficiency, versatility in pipe size, and the capability to process durable materials like PP and HDPE. Its single screw extruder ensures stable and continuous operation, while the thermoforming and coiling equipment contribute to producing pipes that meet stringent quality standards. By incorporating this equipment into a Double Wall Corrugated Pipe Fabrication Plant, manufacturers can achieve reliable, high-volume production with excellent product consistency and operational savings. This machine is an ideal investment for businesses aiming to expand their product offerings and improve manufacturing capabilities in the pipe production sector.

Features:

• Product Name: Double Wall Corrugated Pipe Machine
• Extruder Type: Single Screw Extruder
• Production Capacity: 120-200kg/h
• Pipe Outer Diameter (OD): 40, 50, 63, 75, 90, 110, 160mm
• Pipe Diameter Range: 50-160mm
• Material Compatibility: PP, HDPE
• Designed for efficient Double Wall Corrugated Pipe Production Line operations
• Includes Double Wall Corrugated Pipe Forming Machine for precise shaping
• Equipped with Double Wall Corrugated Pipe Injection Molding Machine for high-quality molding
• Suitable for manufacturing durable and flexible double wall corrugated pipes

Technical Parameters:

Applications:

The Cuishi Double Wall Corrugated Pipe Machine, model SJ75/30, is an advanced Double Wall Corrugated Pipe Manufacturing Equipment designed to meet the diverse needs of industries requiring durable and high-quality corrugated pipes. Originating from Qingdao, China, and certified with CE and ISO9001:2008, this Double Wall Corrugated Pipe Extrusion Machine guarantees reliable performance and compliance with international standards. With a minimum order quantity of just one set and a competitive price range of $20,000 to $32,000, it offers excellent value for manufacturers looking to expand their production capabilities.

This Double Wall Corrugated Pipe Production Line is ideal for producing pipes with diameters ranging from 50mm to 160mm and outer diameters of 40, 50, 63, 75, 90, 110, and 160mm. Its single screw extruder type ensures consistent material flow and efficient extrusion, enabling pipe speeds of 5-6 meters per minute and a production capacity of 120-200 kg per hour. Such capabilities make it suitable for various applications including drainage systems, electrical conduit piping, cable protection, and agricultural irrigation, where robust and flexible piping solutions are crucial.

Packaging is handled with film to ensure the equipment reaches customers in pristine condition. The delivery time is approximately 50 days, reflecting Cuishi’s dedication to quality production and timely fulfillment. Payment terms are flexible, accepting T/T and L/C, which caters to international buyers and facilitates smooth transactions. With a supply ability of 30 sets per month, Cuishi is well-equipped to support growing manufacturing demands.

In practical scenarios, the Cuishi Double Wall Corrugated Pipe Manufacturing Equipment is widely used in infrastructure projects, municipal construction, and industrial pipe production facilities. It is perfectly suited for companies specializing in plastic pipe manufacturing who require a reliable and efficient Double Wall Corrugated Pipe Production Line to enhance their output. Whether producing pipes for underground cable protection or stormwater drainage, this extrusion machine offers durability, precision, and high efficiency, making it an indispensable asset in the pipe manufacturing industry.

Customization:

Cuishi offers customized Double Wall Corrugated Pipe Extrusion Machine services with model number SJ75/30, designed and manufactured in Qingdao, China. Our Double Wall Corrugated Pipe Manufacturing Equipment is CE and ISO9001:2008 certified, ensuring high quality and reliability.

The machine supports a pipe diameter range of 50-160mm with pipe OD options of 40, 50, 63, 75, 90, 110, and 160mm, operating at a pipe speed of 5-6 meters per minute. Equipped with a single screw extruder, the production capacity ranges from 120 to 200 kg/h, meeting diverse production demands.

We guarantee a minimum order quantity of 1 set, with prices ranging from $20,000 to $32,000. Each machine is carefully packaged with protective film for safe delivery. The delivery time is approximately 50 days, backed by a supply ability of 30 sets per month.

Payment terms are flexible, including T/T and L/C options, making it convenient for our global customers. Trust Cuishi's Double Wall Corrugated Pipe Extrusion Machine and Double Wall Corrugated Pipe Manufacturing Equipment to enhance your pipe production efficiency and quality.

Support and Services:

Our Double Wall Corrugated Pipe Machine is backed by comprehensive technical support and professional services to ensure optimal performance and customer satisfaction. We provide detailed installation guidance, operation training, and regular maintenance tips to help you maximize the machine's efficiency and lifespan.

Our skilled technical team is available to assist with troubleshooting and resolving any operational issues promptly. We offer remote support as well as on-site service to minimize downtime and keep your production line running smoothly.

Spare parts and consumables for the Double Wall Corrugated Pipe Machine are readily available to ensure quick replacement and continuous operation. Additionally, we provide software updates and system upgrades to keep your equipment up to date with the latest technology advancements.

We are committed to delivering high-quality after-sales service, including periodic inspections and performance evaluations, to help you maintain optimal machine condition. Our goal is to build a long-term partnership by supporting your business growth through reliable and efficient machinery solutions.
