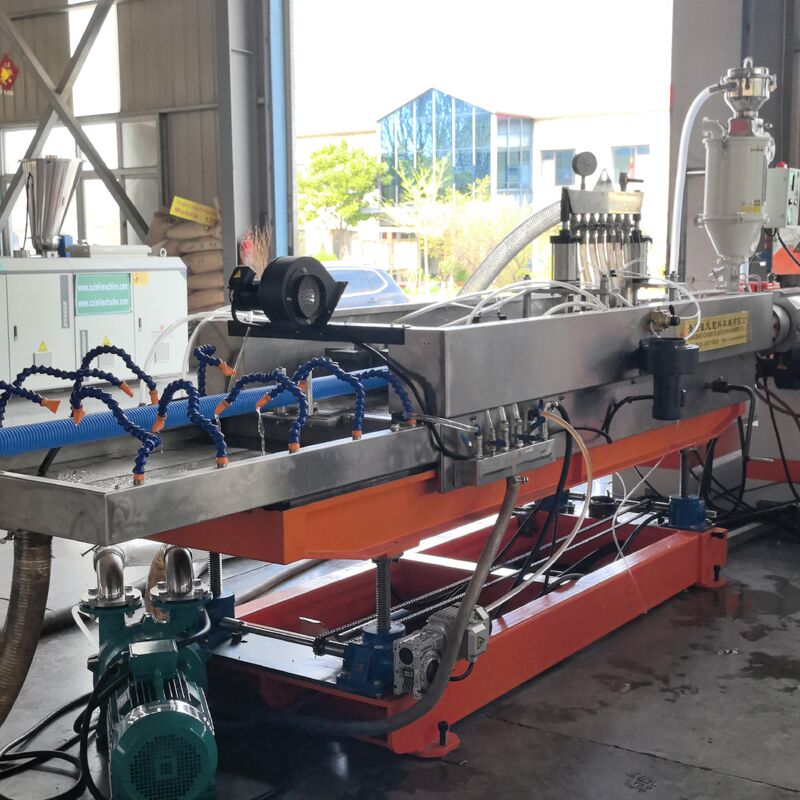

HDPE PE DWC Double Wall Corrugated Pipe Extrusion Line Plastic Sewer Drainage Conduit Pipe Manufacturing Machine

Product Description:

The Double Wall Corrugated Pipe Machine is a highly efficient and versatile piece of equipment designed for the production of high-quality double wall corrugated pipes. This advanced machinery is engineered to meet the demanding needs of modern pipe manufacturing, providing excellent performance with a production capacity ranging from 120 to 200 kg per hour. Its robust design ensures continuous operation with minimal downtime, making it an ideal choice for manufacturers seeking reliability and productivity.

One of the standout features of this machine is its ability to produce pipes with an outer diameter (OD) ranging from 40mm to 160mm, covering standard pipe sizes such as 40, 50, 63, 75, 90, 110, and 160 mm. This wide range makes it suitable for various applications, including drainage systems, cable protection, conduit installations, and other infrastructure projects. The pipe diameter range of 50-160mm further enhances its flexibility, allowing manufacturers to cater to diverse market demands with a single production line.

The Double Wall Corrugated Pipe Machine is equipped with state-of-the-art Double Wall Corrugated Pipe Thermoforming Equipment, which ensures precise shaping and consistent wall thickness throughout the pipe. This thermoforming technology enhances the mechanical strength and durability of the pipes, ensuring they meet industry standards for toughness and longevity. The integration of thermoforming equipment within the production line guarantees superior quality pipes that are both lightweight and resistant to external pressures.

In terms of operational speed, the machine can achieve a pipe speed of 5 to 6 meters per minute. This balanced speed allows for efficient production without compromising the structural integrity or surface finish of the pipes. Such performance metrics make the machine an excellent component of a comprehensive Double Wall Corrugated Pipe Production Line, where speed and quality must go hand in hand to maximize throughput and minimize waste.

Constructed to handle materials such as polypropylene (PP) and high-density polyethylene (HDPE), the machine is versatile in processing commonly used thermoplastics in the pipe manufacturing industry. These materials are known for their excellent chemical resistance, flexibility, and environmental friendliness. The ability to work with both PP and HDPE expands the machine’s application scope, enabling manufacturers to produce pipes suitable for a wide array of environmental conditions and regulatory requirements.

Another important aspect of this machine is its compatibility with the Double Wall Corrugated Pipe Coiling Machine, which facilitates efficient winding and storage of the produced pipes. This integration streamlines the entire production workflow, from extrusion and thermoforming to coiling and packaging. By combining these processes, manufacturers can reduce labor costs, improve safety, and optimize factory floor space.

Overall, the Double Wall Corrugated Pipe Machine represents a comprehensive solution for companies aiming to establish or upgrade their pipe manufacturing capabilities. Its high production capacity, broad pipe diameter range, advanced thermoforming technology, and compatibility with coiling equipment make it a cornerstone of any modern Double Wall Corrugated Pipe Production Line. Whether producing pipes for municipal projects, agricultural irrigation, or industrial applications, this machine delivers consistent quality, operational efficiency, and excellent value for investment.

Features:

• Product Name: Double Wall Corrugated Pipe Machine
• Material: PP HDPE
• Extruder Type: Single Screw Extruder
• Pipe Speed: 5-6m/min
• Production Capacity: 120-200kg/h
• Pipe Diameter Range: 50-160mm
• High efficiency Double Wall Corrugated Pipe Making Machine
• Advanced Double Wall Corrugated Pipe Forming Machine design for precise pipe shaping
• Equipped with Double Wall Corrugated Pipe Coiling Machine for smooth and compact coiling
• Durable construction ensuring long-term reliability and performance

Technical Parameters:

Applications:

The Cuishi Double Wall Corrugated Pipe Machine, model SJ75/30, is a highly efficient and reliable piece of Double Wall Corrugated Pipe Manufacturing Equipment designed for producing high-quality corrugated pipes from PP and HDPE materials. Originating from Qingdao, China, this machine is CE and ISO9001:2008 certified, ensuring adherence to international quality standards. With a pipe diameter range of 50-160mm and pipe outer diameter options of 40, 50, 63, 75, 90, 110, and 160mm, the machine is versatile enough to meet various industrial requirements.

This Double Wall Corrugated Pipe Winding Machinery is ideal for applications in drainage, cable protection, sewage systems, agricultural irrigation, and underground water transportation. Its capability to produce pipes at a speed of 5-6 meters per minute makes it suitable for large-scale manufacturing environments requiring consistent and high-speed production. The single screw extruder design enhances the machine’s efficiency in melting and shaping the PP and HDPE materials into durable, double-walled corrugated pipes.

The Double Wall Corrugated Pipe Winding Machinery features advanced winding technology that ensures precise formation and winding of the corrugated pipes, which contributes to the structural strength and flexibility of the final product. This makes it an excellent choice for companies involved in infrastructure development, construction projects, and utilities that require robust and long-lasting piping solutions. Moreover, the machine’s packaging with film ensures safe delivery and protection during transit, with a delivery time of approximately 50 days.

With a supply ability of 30 sets per month and a minimum order quantity of just one set, the Cuishi SJ75/30 model offers flexibility for small to medium-sized enterprises looking to expand their production capacity. Payment terms include T/T and L/C, providing convenient payment options for international buyers. Priced between $20,000 and $32,000, this Double Wall Corrugated Pipe Manufacturing Equipment represents a cost-effective investment for businesses aiming to produce high-quality pipes efficiently and reliably.

In summary, the Cuishi Double Wall Corrugated Pipe Machine SJ75/30 is perfectly suited for various industrial scenarios, including municipal water drainage, electrical cable protection, agricultural irrigation systems, and other applications requiring durable and flexible piping solutions. Its advanced technology, reliable performance, and comprehensive certifications make it a preferred choice in the field of Double Wall Corrugated Pipe Winding Machinery and manufacturing equipment.

Customization:

Cuishi presents the SJ75/30 Double Wall Corrugated Pipe Fabrication Plant, a high-quality Double Wall Corrugated Pipe Extrusion Machine designed for efficient and reliable production. Originating from Qingdao, China, this Double Wall Corrugated Pipe Manufacturing Equipment is certified with CE and ISO9001:2008, ensuring top standards in quality and performance.

Featuring a single screw extruder, the machine processes PP and HDPE materials with a production capacity of 120-200kg/h. It supports a pipe diameter range of 50-160mm and a pipe speed of 5-6m/min, making it ideal for versatile pipe fabrication needs.

The SJ75/30 model is available with a minimum order quantity of 1 set, priced between $20,000 and $32,000. Each unit is carefully packaged with protective film to ensure safe delivery. With a supply ability of 30 sets per month and a delivery time of 50 days, Cuishi guarantees timely fulfillment of orders.

Payment terms include T/T and L/C, offering flexible options for customers worldwide. Choose Cuishi’s Double Wall Corrugated Pipe Fabrication Plant for dependable and efficient pipe manufacturing solutions tailored to your business requirements.

Support and Services:

Our Double Wall Corrugated Pipe Machine is designed to deliver high efficiency and exceptional performance in producing durable double wall corrugated pipes. To ensure optimal operation and longevity of the machine, we provide comprehensive technical support and services tailored to your needs.

Technical Support:

We offer expert guidance on machine installation, commissioning, and operation to help you achieve the best production results. Our technical team is available to troubleshoot any issues, provide maintenance tips, and assist in optimizing machine settings for different pipe specifications.

Training Services:

We provide detailed training sessions for your operators and maintenance personnel, covering machine operation, safety procedures, routine maintenance, and basic repairs to ensure smooth and safe production processes.

Spare Parts and Upgrades:

Genuine spare parts are readily available to minimize downtime and maintain machine performance. We also offer machine upgrade options to enhance functionality and adapt to evolving production requirements.

Maintenance and Repair:

Regular maintenance services are available to keep your Double Wall Corrugated Pipe Machine running efficiently. Our skilled technicians can perform on-site repairs and preventive maintenance to reduce unexpected breakdowns and extend the machine’s service life.

Customization Services:

If your production needs require specific modifications or custom features, our engineering team can work with you to tailor the machine design to meet your unique requirements.

With our dedicated technical support and comprehensive services, you can maximize the productivity and reliability of your Double Wall Corrugated Pipe Machine, ensuring consistent high-quality pipe production.
